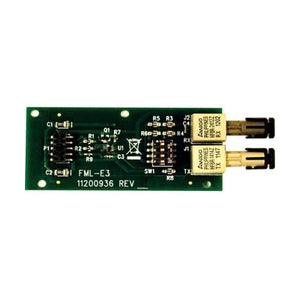

Silent Knight SK-FML Fiber-optic Multi-mode Module (NEW)
Silent Knight SK-FML Fiber-Optic Module – Multi-Mode, ST-Style, 24VDC
The Silent Knight SK-FML Fiber-Optic Module is a high-performance, multi-mode networking solution designed for Silent Knight fire alarm control panels. Compatible with the SK-NIC Network Interface Card, this module enables fast and secure fiber-optic communication across up to 17 panels, making it ideal for large or multi-building installations. Featuring ST-style connectors and support for 62.5/125 micron cable, the SK-FML allows for flexible network design with reliable performance. Fully UL 864 10th Edition and NFPA 72 compliant, it installs easily as a plug-in module for simplified setup and maintenance.
Key Features:
-
Multi-mode fiber support using 62.5/125 micron cable
-
ST-style connectors with up to 8 dB attenuation
-
Plug-in design for fast and easy installation
-
Compatible with Silent Knight SK-NIC network cards
-
Supports up to 17 interconnected panels via fiber loop
-
UL 864 and NFPA 72 compliant for fire system standards
-
Works with FACP models: 6700, 6808, 6820, 6820EVS
-
Mix fiber and copper segments for flexible system upgrades
-
Operating voltage: 24VDC, low current draw (53 mA standby/alarm)
-
Dimensions: 4.0" x 2.5" x 0.25"; Weight: 6.4
