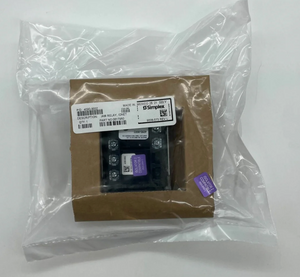

Simplex 4090-9002 Individual Addressable Relay Module (NEW)

Simplex 4090-9002 Individual Addressable Relay Module (NEW)

The Simplex 4090-9002 Relay IAM is an addressable module that provides remote control and supervision of a Form C relay using a single IDNet device address. Power and communications are supplied through the IDNet channel, simplifying installation and wiring.

Key Features

  • Provides Form C (SPDT) relay with Normally Open, Normally Closed, and Common contacts

  • Uses only one IDNet address for both control and supervision

  • Relay defaults to OFF at power-up or if communications are lost

  • LED indicator flashes to confirm valid communication with the fire alarm control panel

  • Dust-resistant thermoplastic housing with galvanized mounting plate

  • Mounts in a standard 4" square electrical box, optional trim plates available

  • Screw terminals support #18–14 AWG conductors

  • Wiring distance up to 2,500 ft from the panel, with overall 10,000 ft allowed including T-taps

Specifications

  • Contact Ratings:

    • 2 A @ 24 VDC (resistive, power-limited, transient suppressed)

    • 1 A @ 24 VDC (inductive, power-limited)

    • 0.5 A @ 120 VAC (non-power-limited, transient suppressed)

  • Operating Temperature: 0–49 °C (32–120 °F)

  • Humidity: up to 93% RH at 38 °C

  • Dimensions: 4 1/8″ H × 4 1/8″ W × 1 3/8″ D (105 × 105 × 35 mm)

  • Approvals: UL Standard 864, CSFM, NYC MEA, FM
