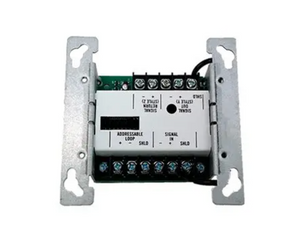

Simplex 4090-9007 IDNet Addressable Monitor Module

Overview
The Simplex 4090-9007 Monitor Module provides an interface between conventional dry-contact devices and a Simplex addressable fire alarm system. It allows pull stations, waterflow switches, heat detectors, and other contact devices to be individually identified and supervised through the IDNet communication channel.

Key Features

  • Compact, sealed module with mounting plate for installation in a standard 4″ electrical box

  • Monitors a single dry-contact initiating device

  • Uses only one IDNet address for reporting status to the fire alarm control panel

  • Power and communication provided over the same IDNet wiring

  • LED indicator flashes periodically to confirm communication with the panel

  • Screw terminals support #18–14 AWG conductors

  • Dust-resistant thermoplastic housing with galvanized mounting plate

Specifications

  • Operating Voltage: 24 VDC from IDNet circuit

  • Standby Current: 375 µA typical

  • Operating Temperature: 0–49 °C (32–120 °F)

  • Humidity: up to 93% RH, non-condensing

  • Dimensions: 4 1/8″ H × 4 1/8″ W × 1 3/8″ D (105 × 105 × 35 mm)

  • Approvals: UL Standard 864, ULC, CSFM, MEA, FM
