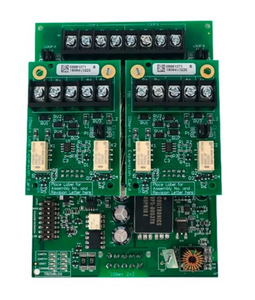

Simplex 4100-3110 IDNet Addressable Relay Module (NEW)

Simplex 4100-3110 IDNet Addressable Relay Module (NEW)

The Simplex 4100-3110 Relay Module provides addressable control of a Form C relay through IDNet communications. It is designed for use with compatible Simplex fire alarm control panels to enable auxiliary functions such as elevator recall, HVAC shutdown, door release, or other controlled equipment.

Key Features

  • Addressable module using IDNet communication for power and data

  • Controls one Form C (SPDT) relay with Normally Open, Normally Closed, and Common contacts

  • Reports relay status to the fire alarm control panel

  • Relay defaults to OFF at power-up or if communications are lost

  • LED indicator flashes to confirm valid communications

  • Mounts in standard 4″ square electrical box with optional trim plates

  • Rugged thermoplastic housing with galvanized steel mounting plate

  • Screw terminals accept #18–14 AWG conductors

Specifications

  • Contact Ratings:

    • 2 A @ 24 VDC resistive, transient suppressed (power-limited)

    • 1 A @ 24 VDC inductive, transient suppressed (power-limited)

    • 0.5 A @ 120 VAC resistive, transient suppressed (non-power-limited)

  • Operating Voltage: 24 VDC from IDNet circuit

  • Operating Temperature: 0–49 °C (32–120 °F)

  • Humidity: up to 93% RH, non-condensing

  • Dimensions: 4 1/8″ H × 4 1/8″ W × 1 3/8″ D (105 × 105 × 35 mm)

  • Approvals: UL Standard 864, ULC, CSFM, MEA
