Fire-Lite 4XZMF Zone Relay Module (NEW)

Fire-Lite 4XZMF Zone Relay Module (NEW)

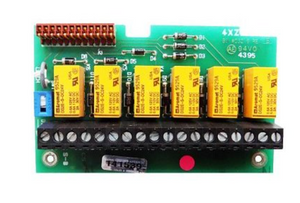

The Fire-Lite 4XZMF is a four-zone transmitter module that provides alarm, trouble, and supervisory outputs from a fire alarm control panel to a remote receiving station. Designed for easy integration, the 4XZMF offers supervised outputs that allow communication of system conditions to a municipal box transmitter, city tie, or other remote monitoring equipment.

Specifications:

  • Model: 4XZMF

  • Manufacturer: Fire-Lite Alarms (Honeywell)

  • Function: Four-zone transmitter module

  • Outputs: Four channels, each programmable for alarm, supervisory, or trouble conditions

  • Indicators: LED status indicators for each channel

  • Power Requirements: 24 VDC nominal, powered from the fire alarm control panel

  • Wiring: Terminal block connections, supervised circuits

  • Mounting: Installs inside the fire alarm control panel enclosure

  • Dimensions: Compact form factor for easy integration

  • Compatibility: Works with Fire-Lite MS-series addressable fire alarm panels

  • Listings: UL, ULC listed for fire alarm system use

Applications:

  • Transmitting alarm, trouble, or supervisory conditions to municipal box transmitters

  • Remote monitoring of Fire-Lite fire alarm control panels

  • Integration with central station or city tie systems
