Fire-Lite CRF-300 (A) Relay Control Module (NEW)

Fire-Lite CRF-300 (A) Relay Control Module (NEW)

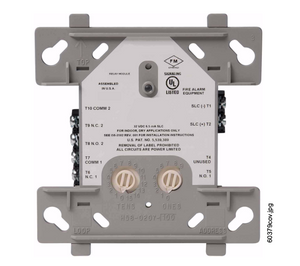

Fire-Lite CRF-300A Intelligent Relay Module

The Fire-Lite CRF-300A is an intelligent addressable relay module that provides the system with a dry-contact output for controlling auxiliary devices such as fans, door holders, dampers, and other equipment. The module is powered directly from the SLC loop and features built-in type identification for automatic recognition by the control panel. With LiteSpeed™ communication, the CRF-300A responds faster than conventional designs, ensuring reliable control in life safety systems.

Features:

  • Provides a dry-contact Form-C relay output for auxiliary control

  • Built-in type identification automatically recognized by the panel

  • Internal circuitry and relay powered from the two-wire SLC loop

  • LED “blinks” green during communication and turns steady red when active

  • Direct-dial addressing via rotary switches (01–159 for MS-9600 series, 01–99 for MS-9200UDLS and MS-9050UD)

  • High noise immunity (EMF/RFI) with wide LED viewing angle

  • SEMS screws with clamping plates for easy wiring

Specifications:

  • Operating Voltage: 15–32 VDC

  • Maximum SLC Current: 6.5 mA (LED on)

  • Average Operating Current: 230 μA (CLIP), 255 μA (LiteSpeed)

  • Relay Output: Two Form-C contacts (switch together)

  • Relay Ratings: Up to 3.0 A @ 30 VDC resistive (see datasheet for full table)

  • Temperature Range: 32 °F to 120 °F (0 °C to 49 °C)

  • Humidity: 10–93% RH, non-condensing

  • Dimensions: 4.5" H × 4" W × 1.25" D; mounts to standard 4" square box

  • Listings: UL, ULC, FM, CSFM, MEA approved
