Fire-Lite LCD-80FC Remote Fire Annunciator

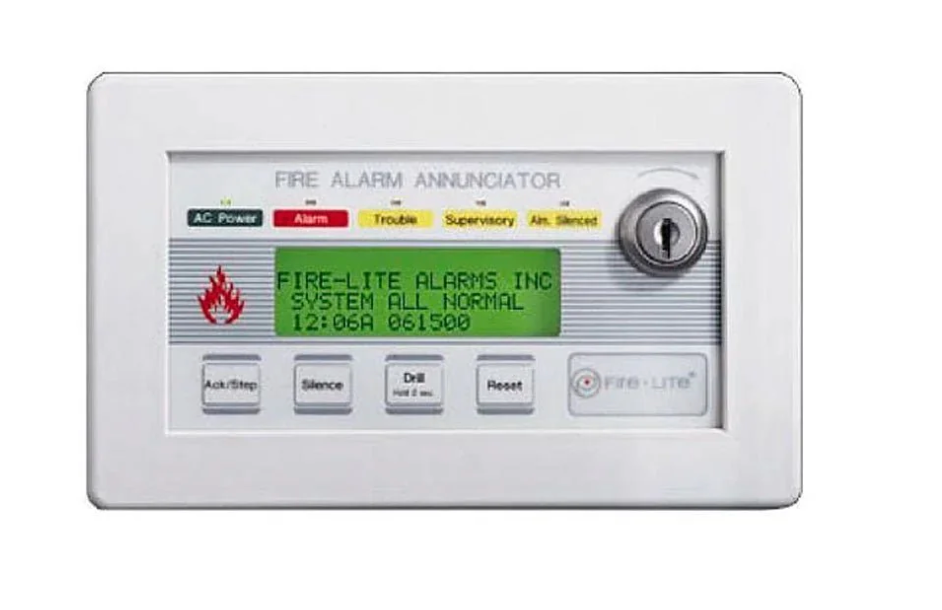

The Fire-Lite LCD-80FC is a remote LCD annunciator designed for use with Fire-Lite MS-9200UDLS and MS-9600(UD)LS series fire alarm control panels. It provides a 2 × 40 character backlit LCD display that replicates all panel functions, allowing full system visibility and control from a remote location. The LCD-80FC offers the same keypad layout as the main panel, enabling operators to acknowledge, silence, reset, and drill the system as needed.

Specifications:

  • Model: LCD-80FC

  • Manufacturer: Fire-Lite Alarms (Honeywell)

  • Function: Remote LCD fire annunciator with system control

  • Display: 80-character (2 × 40) backlit LCD

  • Controls: Acknowledge, Silence, Reset, and Drill functions

  • Indicators: LED status indicators for Alarm, Supervisory, and Trouble

  • Communication: RS-485 interface (ANN-BUS) with compatible Fire-Lite panels

  • Addressing: DIP switch selectable device address

  • Power Requirements: 24 VDC nominal, 40 mA standby / 160 mA alarm

  • Mounting: Fits standard single-gang, double-gang, or 4-inch electrical boxes; surface or flush mount

  • Dimensions: 6.9 in H × 5.5 in W × 1.25 in D (17.5 × 14 × 3.2 cm)

  • Operating Environment: 32 °F to 120 °F (0 °C to 49 °C), 10–93% RH non-condensing

  • Compatibility: Fire-Lite MS-9200UDLS, MS-9600LS, and MS-9600UDLS panels

  • Listings: UL, ULC, CSFM, FM approved for fire alarm use

Applications:

  • Remote annunciation and system control for Fire-Lite MS-9200 and MS-9600 series systems

  • Fire command centers and security desks

  • Lobbies, control rooms, and other remote monitoring points
