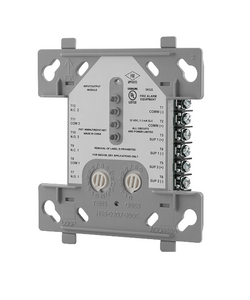

Gamewell-FCI AMM-2RIF Addressable Dual Input/Relay Module (NEW)
Gamewell AMM-2RIF Multi-Function Module – Dual Input/Output for Streamlined Fire System Integration
The Gamewell AMM-2RIF is a space-saving, multi-function module that combines two Class B monitor inputs and two Form C relay outputs into a single device. Designed for use with Gamewell analog addressable fire alarm systems, it provides cost-effective control and monitoring for systems requiring multiple inputs and outputs at a single location—ideal for high-rise buildings and large commercial facilities.
Equipped with dedicated bi-color LEDs for each input and output, the AMM-2RIF allows real-time indication of normal, alarm, and trouble conditions. It mounts easily to a standard 4-inch square box, the SMB500 surface box, or inside a DNR(W) duct housing, making installation flexible and efficient.
Key Features:
-
Combines 2 relay outputs and 2 supervised monitor inputs in one device
-
Form C relay contacts for panel-controlled switching
-
Saves space and installation costs in large-scale applications
-
Bi-color LEDs for clear input/output status indication
-
Mounts to standard 4" box, SMB500, or DNR(W) duct housing
-
Ideal for controlling smoke/fire dampers, HVAC fans, security doors, and smoke control systems
