Gamewell-FCI AMM-4F Addressable Monitor Module (New)

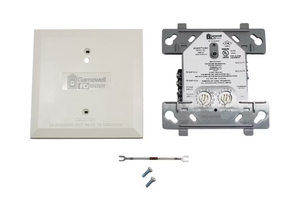

Honeywell Gamewell-FCI Velociti® Series AMM-4F Addressable Monitor Module
The Honeywell Gamewell-FCI Velociti® Series AMM-4F is a high-performance, addressable monitor module designed to supervise a single initiating device circuit in either Class A (Style D) or Class B (Style B) configurations. Ideal for integrating normally open (N.O.) dry contact devices like heat detectors, waterflow switches, and manual pull stations, the AMM-4F delivers fast, reliable communication with Gamewell-FCI analog addressable fire alarm panels.
Featuring a compact design for easy installation in a 4” square junction box, the AMM-4F supports up to 40 ohms of line resistance, making it suitable for use with linear heat detection devices. Equipped with bi-color LEDs for intuitive status indication and a convenient visual rotary address switch (01-159), this module ensures rapid, efficient system response using Velociti® communication protocol—offering response speeds up to five times faster than previous models.
Key Features:
-
Supports Class A (Style D) and Class B (Style B) wiring
-
Visual rotary switch for easy addressing (01-159)
-
Accommodates any N.O. dry contact device
-
Compact design fits a 4” square electrical box
-
Bi-color LED flashes green when polled, steady red on alarm
-
UL 864 9th Edition, FM, MEA FDNY, CSFM approved
