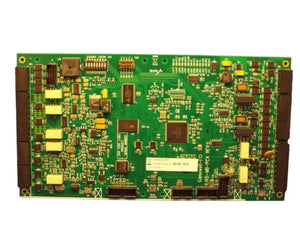

Gamewell-FCI ILI-MB-E3 Intelligent Loop Interface Mainboard (NEW)
Gamewell-FCI ILI-MB-E3 Intelligent Loop Interface Main Board
The Gamewell-FCI ILI-MB-E3 serves as the primary interface for the E3 Series® fire alarm and mass notification systems. Equipped with a 32-bit RISC processor, this compact "panel on a board" offers robust performance and flexibility for advanced fire protection solutions.
Key Features:
-
Dual Signaling Line Circuits (SLCs): Supports up to 159 detectors, 159 modules, and 159 addressable sounder bases per SLC in Velociti® mode; 99 detectors and 99 modules in CLIP™ mode.
-
Notification Appliance Circuits (NACs): Two Class A or Class B circuits, each rated at 2.0 amps, with automatic adjustment to NAC End-of-Line resistor values between 1k–55k ohms.
-
Communication Interfaces: Includes RS-485 support for up to 16 ASM-16 switch modules and/or ANU-48 LED driver modules, and a 625K baud ARCNET network interface.
-
Event Logging: Maintains an 8,100-event history log for comprehensive system monitoring.
-
Compliance: UL 864 10th Edition and UL 2572 2nd Edition listed for mass notification applications.
Ideal for commercial, industrial, and institutional installations requiring scalable and reliable fire alarm and mass notification capabilities.
