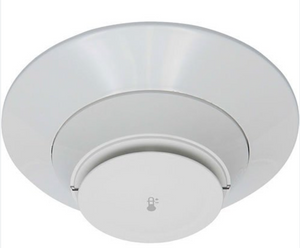

Fire-Lite H365R (A) Intelligent Rate-of-Rise Heat Detector (NEW)
The Fire-Lite H365RA is an intelligent, addressable rate-of-rise thermal detector designed for use with Fire-Lite’s addressable fire alarm control panels. It is part of the H365(A) Series, which replaces the H355 Series with a modern, low-profile design and advanced thermistor technology. The H365RA provides reliable property protection by responding to temperature increases of 15°F (8.3°C) per minute, making it ideal for areas where smoke detection may not be practical.
Features:
-
Intelligent addressable rate-of-rise thermal detector
-
Factory preset rate-of-rise detection at 15°F (8.3°C) per minute
-
Compatible with Fire-Lite addressable control panels (LiteSpeed™ protocol)
-
Sleek, low-profile housing designed to UL 268 7th Edition
-
Rotary decimal address switches for fast, accurate device setup
-
Dual LEDs for 360° visibility (blink red in normal mode, steady red in alarm)
-
Built-in functional test switch activated by external magnet
-
Tamper-resistant design with integral communications and device-type identification
-
Remote test feature available from the panel
-
Low standby current with high noise immunity (EMF/RFI)
Specifications:
-
Operating Temperature: –4 °F to 100 °F (–20 °C to 38 °C)
-
Humidity Range: 10–93% RH, non-condensing
-
Operating Voltage: 15–32 VDC
-
Standby Current: 200 µA @ 24 VDC average
-
Alarm Current: 4.5 mA @ 24 VDC
-
Dimensions: 2.0" high; base diameter 6.1" (B300-6) or 4.0" (B501)
-
Weight: 3.4 oz (95 g)
-
Listings: UL, ULC (S2517), FM, CSFM approved
Applications:
-
Use in commercial, institutional, and industrial environments where smoke detection is unsuitable
-
Ideal for areas exposed to dust, steam, or other airborne particles that may trigger nuisance smoke alarms
-
Compatible with Fire-Lite intelligent bases for flexible installation
