Mircom CZ-6 Six Zone Interface Module (NEW)

Mircom CZ-6 Six Zone Interface Module (NEW)

  • $350.00
Shipping calculated at checkout.

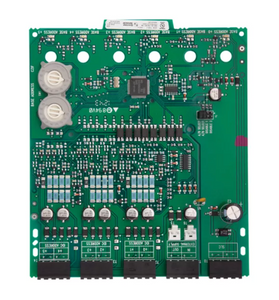

Mircom CZ-6 Six Zone Interface Module

The Mircom CZ-6 is a six-zone conventional interface module that allows conventional detection circuits to be connected to Mircom’s intelligent fire alarm control panels. Each module supports up to six Class B detection zones, providing a cost-effective solution for integrating legacy devices or extending protection areas. With supervised IDC circuits and individual status indication, the CZ-6 ensures reliable monitoring of conventional detectors within an addressable system.

Specifications:

  • Model: CZ-6

  • Manufacturer: Mircom Technologies Ltd.

  • Function: Six-zone conventional interface module

  • Zones Supported: Six Class B initiating device circuits (IDC)

  • Device Compatibility: Two-wire conventional detectors listed with Mircom panels

  • Indicators: Individual LED status indicators per zone

  • Addressing: Rotary decimal switches for device address selection

  • Power Requirements: 24 VDC nominal from the signaling line circuit (SLC)

  • Wiring Terminals: Accepts 12–18 AWG field wiring, IDC circuits fully supervised

  • Mounting: Standard electrical enclosure or dedicated mounting cabinet

  • Dimensions: Approx. 6.5 × 4.5 × 1.5 in

  • Operating Environment: 32°F to 120°F (0°C to 49°C), 10–93% RH non-condensing

  • Listings & Approvals: UL, ULC listed for fire alarm system use

Applications:

  • Connecting multiple conventional detection zones to an addressable Mircom system

  • Retrofits where existing conventional devices must be retained

  • Expanding system capacity in commercial, institutional, or industrial installations
