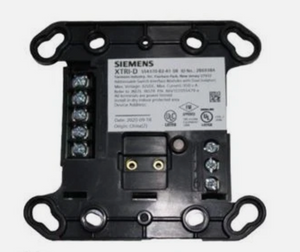

Siemens XTRI-D Dual-Input Intelligent Interface Module

The Siemens XTRI-D is a dual-input intelligent interface module that supervises and monitors two sets of dry contacts, while only requiring a single address on the SLC loop. With built-in ISOtechnology™ dual isolation, the XTRI-D meets NFPA 72 Class X (Style 7) survivability requirements, automatically isolating short circuits and restoring normal operation once faults are cleared. It is ideal for applications such as monitoring a waterflow switch and its respective valve tamper switch.

Features:

  • Provides two supervised inputs using a single address

  • Built-in ISOtechnology™ dual isolator for Class X (Style 7) wiring

  • Supports up to 252 isolators per loop and up to 30 devices between isolators

  • Polarity-insensitive wiring in non-isolation mode (SureWire™ technology)

  • Multi-color LED: Green (normal), Amber (trouble), Red (alarm/change of status)

  • Low current draw for efficient system operation

  • Programmable and testable via Siemens DPU field device programmer

  • Mounts in a standard 4" square or double-gang electrical box with included 5" faceplate

  • RoHS compliant

Specifications:

  • Operating Voltage: 13–32 VDC

  • Current Draw (max): 950 µA

  • Temperature Range: 32 °F to 120 °F (0 °C to 49 °C)

  • Humidity: 0–95% RH, non-condensing

  • Dimensions: 5" (12.7 cm) square faceplate; fits 4" (10.2 cm) box, 2-1/8" (5.4 cm) deep

  • Listings: UL864, UL2572, UL2017, CAN/ULC-S527, CAN/ULC-S576; FM Approved

Applications:

  • Monitoring of two dry-contact devices such as waterflow switches, valve tampers, or other field contacts

  • High-rise and campus installations requiring Class X survivability

  • Use where space-saving dual-input functionality is required
