Siemens XTRI-M Miniature Intelligent Interface Module (NEW)

Siemens XTRI-M Miniature Intelligent Interface Module (NEW)

Shipping calculated at checkout.

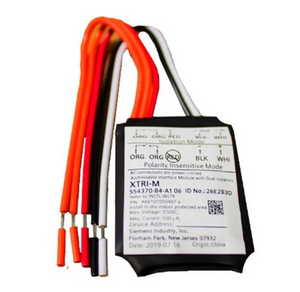

Siemens XTRI-M Miniature Intelligent Interface Module

The Siemens XTRI-M is a compact, single-input intelligent interface module designed to monitor a normally-open dry-contact device while occupying only one address on the SLC loop. Its small size allows the module to be installed directly inside a standard electrical box behind the monitored device, making it ideal for space-limited applications. The XTRI-M is part of Siemens’ XTRI series and provides reliable, addressable monitoring with low standby current.

Features:

  • Miniature single-input module for space-limited applications

  • Monitors a normally-open dry-contact device (e.g., pull station, waterflow switch, tamper switch)

  • Occupies one address on the SLC loop

  • Compact design allows installation inside a single-gang electrical box

  • Polarity-insensitive wiring with SureWire™ technology

  • LED status indicator: Green (normal), Red (alarm/change of status), Amber (trouble)

  • Fully programmable and testable with Siemens DPU field device programmer

  • Provides reliable loop supervision for fault detection

Specifications:

  • Operating Voltage: 13–32 VDC

  • Current Draw (max): < 500 µA

  • IDC Circuit: One Class B (Style B) monitored input

  • Temperature Range: 32 °F to 120 °F (0 °C to 49 °C)

  • Humidity: 0–95% RH, non-condensing

  • Dimensions: Approx. 2.5 in. × 1.3 in. × 0.5 in. (compact form factor)

  • Mounting: Inside standard single-gang or double-gang box behind monitored device

  • Listings: UL864, CAN/ULC-S527, FM Approved

Applications:

  • Monitoring a single pull station or tamper switch in a compact location

  • Retrofitting addressable monitoring into existing conventional devices

  • Small-space or concealed installations requiring intelligent monitoring
