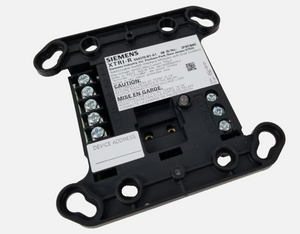

Siemens XTRI-R Single-Input Intelligent Interface Module with Relay

The Siemens XTRI-R is a single-input intelligent interface module with a programmable Form-C relay output. It supervises and monitors one set of dry contacts while also providing a control relay for auxiliary equipment. Equipped with built-in ISOtechnology™ isolation, the XTRI-R meets NFPA 72 Class X (Style 7) survivability requirements by automatically isolating short circuits and restoring normal communication when the fault is cleared.

Features:

  • Provides one supervised input plus a Form-C relay output

  • Integrated ISOtechnology™ isolator for Class X (Style 7) wiring

  • Supports up to 252 isolators per loop and 30 devices between isolators

  • Relay Rating: 2 A @ 30 VDC resistive

  • Polarity-insensitive wiring in non-isolation mode (SureWire™ technology)

  • Multi-color LED: Green (normal), Amber (trouble), Red (alarm/change of status)

  • Programmable and testable with Siemens DPU field device programmer

  • Supplied with 5" faceplate for use in a standard 4" square or double-gang electrical box

  • RoHS compliant

Specifications:

  • Operating Voltage: 13–32 VDC

  • Max Current Draw: 1.2 mA

  • Relay Type: Form-C dry contact

  • Temperature Range: 32 °F to 120 °F (0 °C to 49 °C)

  • Humidity: 0–95% RH, non-condensing

  • Dimensions: 5" (12.7 cm) square faceplate; fits 4" (10.2 cm) box, 2-1/8" (5.4 cm) deep

  • Listings: UL864, UL2572, UL2017, CAN/ULC-S527, CAN/ULC-S576; FM Approved

Applications:

  • Monitoring a single dry-contact device with the addition of a relay output

  • Elevator recall, door holder release, or fan/damper shutdown functions

  • Systems requiring Class X survivability with integrated auxiliary control
