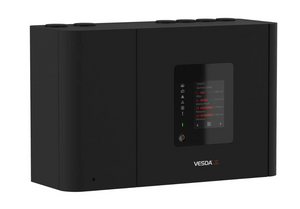

VESDA-E VES-A10-P-UL Aspirating Smoke Detector (NEW) (IN STOCK)

VESDA-E VES-A10-P-UL - IN STOCK SAME DAY SHIPPING

The VESDA-E VES-A10-P-UL is an advanced sector-addressable aspirating smoke detector featuring a 3.5-inch display and designed for high-sensitivity environments. It uses a valve-controlled inlet manifold and adaptive scanning technology to identify the first sector in alarm while continuing to monitor all connected sectors. This ensures rapid smoke detection and precise location awareness in mission-critical applications.

Specifications:

• Model: VES-A10-P-UL

• Detection Method: Aspirating (air sampling via pipe network)

• Sector Addressability: Up to 4 configurable sectors

• Display: 3.5" LCD for status, smoke levels, and alarm thresholds

• Supply Voltage: 18–30 VDC (24 V nominal)

• Power Consumption (24 VDC): Quiescent ~10 W; Alarm ~11.6 W

• Dimensions (W × H × D): 350 × 225 × 135 mm (13.8 × 8.9 × 5.3 in)

• Weight: ~4.4 kg (≈ 9.7 lb)

• Operating Temperature (UL listed): 0 °C to 39 °C (32 °F to 102 °F)

• Sampled Air Temperature Range: –20 °C to 60 °C (–4 °F to 140 °F)

• Humidity: 5% to 95% RH, non-condensing

• Coverage Area: Up to 2,000 m² (~21,500 sq ft)

• Pipe Network Capacity: 560 m branched, 280 m linear

• Relay Outputs: 12 programmable relays, 2 A @ 30 VDC (resistive)

• IP Rating: IP40 (enclosure)

• Sensitivity Range: 0.005% to 20% obs/m

• Event Log: Stores up to 20,000 events

• Interfaces: VESDAnet, Ethernet, USB

Applications:

• Data centers and server rooms

• Clean rooms and pharmaceutical facilities

• Telecommunication hubs

• High-value asset protection zones

• Environments requiring early warning smoke detection with sector identification
