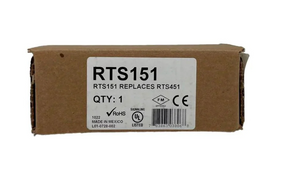

System Sensor RTS151 Remote Test Station (NEW)

System Sensor RTS151 Remote Test Station (NEW)

System Sensor RTS151 Remote Test Station

The System Sensor RTS151 is a remote test station designed for use with System Sensor duct smoke detectors. It allows convenient functional testing of detectors located in ducts or hard-to-reach areas by simulating smoke conditions and verifying detector response. The RTS151 provides a simple, secure way to ensure duct smoke detectors remain code-compliant and operational without requiring direct access to the detector itself.

Specifications:

  • Model: RTS151

  • Manufacturer: System Sensor (Honeywell)

  • Function: Remote test station for duct smoke detectors

  • Compatibility: Works with System Sensor 2-wire and 4-wire duct smoke detectors (e.g., D4P120, DH100, D2, DNR, etc.)

  • Controls: Push-button switch to initiate detector test cycle

  • Indicators: LED alarm indicator

  • Power Requirements: 24 VDC or 120 VAC (depending on detector compatibility)

  • Mounting: Single-gang electrical box

  • Dimensions: 4.5 in × 2.75 in × 0.8 in (11.4 × 7.0 × 2.0 cm)

  • Construction: Stainless steel faceplate with engraved labeling

  • Listings & Approvals: UL, ULC listed for fire alarm use

Applications:

  • Functional testing of duct smoke detectors located in ceilings, air handling units, and other inaccessible spaces

  • Code-compliant maintenance testing in commercial and industrial systems

  • Buildings where routine verification of duct detectors is required
