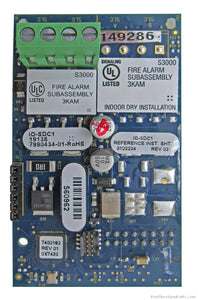

Edwards iO-SDC1 Addressable Single Loop Controller Card (NEW)

Edwards iO-SDC1 Addressable Single Loop Controller Card (NEW)

  • $350.00


Edwards iO-SDC1 Single Loop Controller Card – Expandable SLC Module for iO64 & iO1000 Panels

The Edwards iO-SDC1 is a versatile single loop controller card designed to enhance the capacity and flexibility of Edwards iO fire alarm systems. It serves as a direct replacement for the standard 64-point loop on the iO64 panel, or as a 250-point expansion module for the iO1000, supporting up to 250 intelligent devices on a single SLC.

Engineered for performance and reliability, the iO-SDC1 supports Class A or Class B wiring, up to 64 isolators per loop, and operates with a maximum loop resistance of 66 ohms. Ideal for scalable fire alarm installations, it delivers efficient communication, diagnostic precision, and robust circuit support—all in a compact form factor.

Key Features:

  • Compatible with iO64 (64 points) and iO1000 (250 points)

  • Supports Class A and Class B SLC configurations

  • Handles up to 64 isolators per loop

  • Operates on 24 VDC with up to 80 mA in alarm

  • Designed for commercial and institutional life safety systems

Technical Specs:

  • Max loop resistance: 66 Ω | Capacitance: 0.5 µF

  • Circuit current: 0.5 A max | Wire size: 12–18 AWG

  • Operating range: 32–120°F (0–49°C), up to 93% humidity (non-condensing)

  • Ground fault impedance range: 0–5 kΩ

DATASHEET
