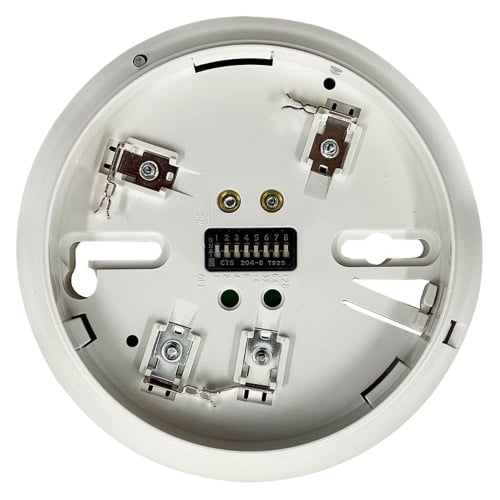

Simplex 4098-9792 TrueAlarm Standard Detector Base (NEW)
Simplex 4098-9792 Addressable Sensor Base
For use with Simplex Intelligent Control Panels (4010, 4020, 4100, 4100+, 4100U, 4100ES, 4008, and 2120) using IDNET and MAPNET II Communications.
Simplex 4098-9792 Compatible Optional Accessories
-
2098-9737 Remote or local mount supervised relay: DPDT contacts for resistive/suppressed loads, power limited rating of 3 A @ 28 VDC; non-power limited rating of 3 A @ 120 VAC (requires external 24 VDC coil power)
-
4098-9860 Remote or local mount supervised relay: SPDT dry contacts, power limited rating of 2 A @ 30 VDC, resistive; non-power limited rating of 0.5 A @ 125 VAC, resistive
-
4098-9822 LED Annunciation Relay
-
4098-9832 Adapter plate: Required for surface or semi-flush mounting to 4” square electrical box and for surface mounting to 4” octagonal box; Can be used for cosmetic retrofitting to existing 6-3/8” diameter base product
-
2098-9808 Remote Red LED Alarm Indicator: Mounts on single gang box.
Simplex 4098-9792 For Use with Simplex TrueAlarm Sensor Heads:
- 4098-9714 Photoelectric Smoke
-
4098-9717 Ionization Smoke
- 4098-9717 Heat
- 4098-9754 Multi-Sensor
